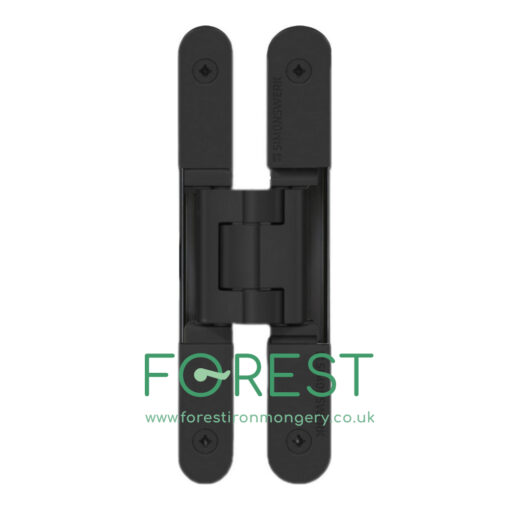

Simonswerk Tectus TE 240 3D Concealed Hinge – RAL 9005 Matt Deep Black (SW 107)

The Tectus TE 240 3D concealed hinge in RAL 9005 Matt Deep Black (SW 107) is a 3D adjustable hinge that is hidden within the door and frame so no knuckle is visible giving a clean and sleek modern look for the doors.

Hinges are SOLD AS EACH, with a WEIGHT CAPACITY OF 60KG when using 2 hinges, based on a 2000mm High x 1000mm Wide Door.
[Please Refer To Load Capacity Link Below]

Please note aswell as selling the Tectus hinges we also sell the installation tools required to install them.

We are very experienced in selling and specifying Tectus on high end projects, so please come and see our SHOWROOM if you need to see any of the products or finish details.

Any questions please feel free to email or you can also call our technical department and we will gladly help.

Product Features

• Completely concealed hinge system
• For timber, steel or aluminium frames
• For unrebated residential and heavy-duty doors
• Sideways closed hinge body for an aesthetically pleasing mortise appearance
• Comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
• Maintenance-free slide bearings

Technical Details

• Load capacity – 60.0 kg
• Overall Length – 155.0 mm
• Width (door part) – 18.0 mm
• Width (frame part) – 21.0 mm
• Cutter diameter – 16.0 mm
• Collar ring diameter – 30.0 mm
• Opening angle – 180°

Product Links

TE 240 3D Datasheet
TE 240 3D Installation Instructions
TE 240 3D Adjustment Instructions
TE 240 3D Load Capacity
Tectus Catalogue
