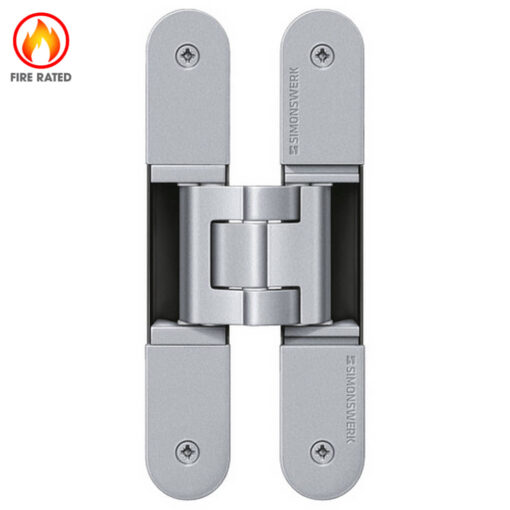

Simonswerk Tectus TE 340 3D FR Concealed Hinge – Satin Chrome Look (F1) (SW 124)
£74.03£88.84 Exc VATInc VAT
The Tectus TE 340 3D FR Fire Rated concealed hinge in F1 SW 124 Satin Chrome Look is a 3D adjustable FD30 Fire Rated hinge that is hidden within the door and frame so no knuckle is visible giving a clean and sleek modern look for the doors. It comes with integrated intumescent (Sold as each).
This product is available for Click & Collect.
The Tectus TE 340 3D FR Fire Rated concealed hinge in F1 SW 124 Satin Chrome Look is a 3D adjustable FD30 Fire Rated hinge that is hidden within the door and frame so no knuckle is visible giving a clean and sleek modern look for the doors. It comes with integrated intumescent.
Being 30 Minute Fire Rated these hinges are CE Marked, Certifire Approved and have a UKCA Certificate.
Quality Marks
Hinges are SOLD AS EACH, with a WEIGHT CAPACITY OF 80KG when using 2 hinges, based on a 2000mm High x 1000mm Wide Door.
[Please Refer To Load Capacity Link Below]
Please note aswell as selling the Tectus hinges we also sell the installation tools required to install them.
We are very experienced in selling and specifying Tectus on high end projects, so please come and see our SHOWROOM if you need to see any of the products or finish details.
Any questions please feel free to email or you can also call our technical department and we will gladly help.
Product Features
- Integrated intumescent kit
- Completely concealed hinge system
- For timber, steel or aluminium frames
- For unrebated residential and heavy-duty doors
- Sideways closed hinge body for an aesthetically pleasing mortise appearance
- Comfortable 3D adjustment (side +/- 3.0 mm, height +/- 3.0 mm, compression +/- 1.0 mm)
- Maintenance-free slide bearings
Technical Details
- Load capacity – 80.0 kg
- Overall Length – 160.0 mm
- Width (door part) – 28.0 mm
- Width (frame part) – 28.0 mm
- Cutter diameter – 24.0 mm
- Collar ring diameter – 30.0 mm
- Opening angle – 180°
Product Links
TE 340 3D Datasheet
TE 340 3D Installation Instructions
TE 340 3D Adjustment Instructions
TE 340 3D Load Capacity
Tectus Catalogue
Certifire Certificate
CE Marked Certificate
UKCA Certificate
